Check the below NCERT MCQ Questions for Class 7 Maths Chapter 5 Lines and Angles with Answers Pdf free download. MCQ Questions for Class 7 Maths with Answers were prepared based on the latest exam pattern. We have provided Lines and Angles Class 7 Maths MCQs Questions with Answers to help students understand the concept very well.

Students can also refer to NCERT Solutions for Class 7 Maths Chapter 5 Lines and Angles for better exam preparation and score more marks.

## Lines and Angles Class 7 MCQs Questions with Answers

Question 1.

When the sum of the measures of two angles is 90°, the angles are called

(а) supplementary angles

(b) complementary angles

(c) adjacent angles

(d) vertically opposite angles

## Answer

Answer: (b) complementary angles

Hint:

Definition of complementary angles

Question 2.

The sum of the measures of two complementary angles is

(a) 180°

(b) 60°

(c) 45°

(d) 90°

## Answer

Answer: (d) 90°

Hint:

Definition of complementary angles

Question 3.

The measure of the complement of the angle 30° is

(а) 30°

(b) 16°

(c) 60°

(d) 160°

## Answer

Answer: (c) 60°

Hint:

90° – 30° = 60°.

Question 4.

Which of the following statements is true?

(a) Two acute angles can be complementary to each other

(b) Two obtuse angles can be complementary to each other

(c) Two right angles can be complementary to each other

(d) One obtuse angle and one acute angle can be complementary to each other

## Answer

Answer: (a) Two acute angles can be complementary to each other

Question 5.

The measure of the complement of the angle 46° is

(a) 90°

(b) 44°

(c) 16°

(d) 136°

## Answer

Answer: (b) 46°

Hint:

Complementary angle = 90 − given angle

⇒ Complement of 46 = 90 − 46 = 44

Question 6.

What is the measure of the complement of the angle 80°?

(a) 10°

(b) 100°

(c) 36°

(d) 20°

## Answer

Answer: (a) 10°

Hint:

90° – 80° = 10°.

Question 7.

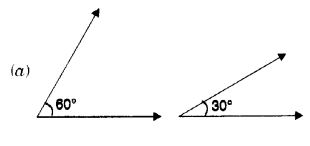

Which pair of the following angles are complementary?

## Answer

Answer: (a)

Hint:

60°+ 30° = 90°.

Question 8.

The measure of the angle which is equal to its complement is

(a) 30°

(b) 60°

(c) 46°

(d) 90°

## Answer

Answer: (c) 46°

Hint:

x° + x° = 90° ⇒ x° = 45°.

Question 9.

Which of the following pairs of angles is not a pair of complementary angles?

(a) 60°, 30°

(b) 66°, 34°

(c) 0°, 90°

(d) 160°, 30°

## Answer

Answer: (d) 160°, 30°

Hint:

150° + 30° = 180° ≠ 90°.

Question 10.

What is the measure of the complement of the angle 90°?

(а) 90°

(b) 0°

(c) 180°

(d) 46°

## Answer

Answer: (b) 0°

Hint:

90° – 90° = 0°.

Question 11.

When the sum of the measures of two angles is 180°, the angles are called

(a) adjacent angles

(b) complementary angles

(c) vertically opposite angles

(d) supplementary angles

## Answer

Answer: (d) supplementary angles

Hint:

Definition of supplementary angles.

Question 12.

The sum of the measures of two supplementary angles is

(a) 90°

(b) 180°

(c) 360°

(d) none of these

## Answer

Answer: (b) 180°

Hint:

Definition of supplementary angles.

Question 13.

The measure of the supplement of the angle 120° is

(a) 30°

(b)45°

(c) 60°

(d) 90°

## Answer

Answer: (c) 60°

Hint:

180° – 120° = 60°.

Question 14.

Which of the following statements is true?

(a) Two acute angles can be supplementary.

(b) Two right angles can be supplementary.

(c) Two obtuse angles can be supplementary.

(d) One obtuse angle and one acute angle cannot be supplementary

## Answer

Answer: (b) Two right angles can be supplementary.

Question 15.

The measure of the supplement of the angle 90° is

(a) 45°

(b) 60°

(c) 30°

(d) 90°

## Answer

Answer: (d) 90°

Hint:

180° – 90° = 90°.

Question 16.

The measure of the angle which is equal to its supplement is

(a) 30°

(b) 45°

(c) 90°

(d) 60°

## Answer

Answer: (c) 90°

Hint:

x° + x° = 180° ⇒ x° = 90°.

Question 17.

Which of the following pairs of angles is not a pair of supplementary angles?

(a) 90°, 90°

(b) 32°, 58°

(c) 0°, 180°

(d) 76°, 104°

## Answer

Answer: (b) 32°, 58°

Hint:

32° + 58° = 90° ≠ 180°.

Question 18.

What is the measure of the supplement of the angle 0°?

(a) 45°

(b) 90°

(c) 120°

(d) 180°

## Answer

Answer: (d) 180°

Hint:

180° – 0° = 180°.

Question 19.

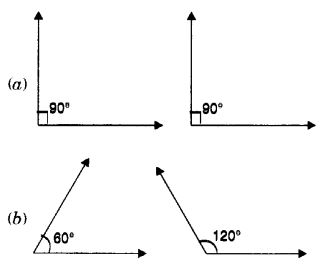

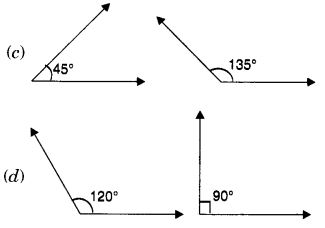

Which pair of the following angles are not supplementary?

## Answer

Answer: (d)

Hint:

120° + 90° = 210° ≠ 180°.

Question 20.

The measure of the supplement of the angle 179° is

(a) 1°

(b) 2°

(c) 3°

(d) 4°

## Answer

Answer: (a) 1°

Hint:

180° – 179° – 1°.

Question 21.

Which of the following statements is true?

(a) Two adjacent angles can be complementary.

(b) Two adjacent angles cannot be supplementary

(c) An acute angle cannot be adjacent to an obtuse angles.

(d) Two right angles cannot be adjacent angles

## Answer

Answer: (a) Two adjacent angles can be complementary.

Question 22.

The angles in a linear pair are

(a) complementary

(b) supplementary

(c) not adjacent angles

(d) vertically opposite angles

## Answer

Answer: (b) supplementary

Hint:

Definition of a linear pair of angles.

Question 23.

Which of the following statements is true?

(a) Two acute angles can form a linear pair.

(b) Two obtuse angles can form a linear pair

(c) Two right angles can form a linear pair

(d) One obtuse angle and one acute angle cannot form a linear pair

## Answer

Answer: (c) Two right angles can form a linear pair

Question 24.

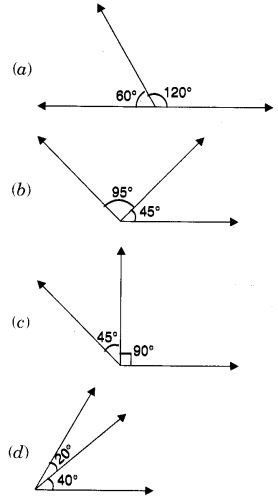

Which of the following pairs of angles form a linear pair?

## Answer

Answer: (a)

Hint:

120° + 60° = 180°.

Question 25.

The sum of the measures of the angles in a linear pair is

(a) 90°

(b) 180°

(c) 360°

(d) none of these

## Answer

Answer: (b) 180°

Hint:

Definition of a linear pair of angles.

Question 26.

Which of the following statements is false?

(a) Two vertically opposite angles can be acute

(b) Two vertically opposite angles can be obtuse

(c) Two vertically opposite angles can be right angles

(d) Two vertically opposite angles may be unequal

## Answer

Answer: (d) Two vertically opposite angles may be unequal

Question 27.

Which of the following statements is false?

(a) When a transversal cuts two parallel lines, each pair of corresponding angles are equal.

(b) When a transversal cuts two parallel lines, each pair of alternate interior angles are equal.

(c) When a transversal cuts two parallel lines, each pair of interior angles on the same side of the transversal are supplementary.

(d) A transversal cuts two parallel lines in three points

## Answer

Answer: (d) A transversal cuts two parallel lines in three points

Question 28.

In the following figure, ∠ AOB and ∠ BOC are

(a) complementary angles

(b) supplementary angles

(c) adjacent angles

(d) none of these

## Answer

Answer: (d) none of these

Question 29.

In the following figure, reflex ∠ AOB is equal to

(a) 60°

(b) 120°

(c) 300°

(d) 360°

## Answer

Answer: (c) 300°

Hint:

∠AOB = 360° – 60° = 300°.

Question 30.

Which of the following statements is false?

(a) When a transversal cuts two lines, such that pairs of corresponding angles are equal, then the lines have to be parallel.

(b) When a transversal cuts two lines such that pairs of alternate interior angles are equal, then the lines have to be parallel.

(c) When a transversal cuts two lines such that pairs of interior angles on the same side of the transversal are supplementary, then the lines have to be parallel.

(d) When a transversal cuts two lines such that pairs of interior angles on the same side of the transversal are complementary, then the lines have to be parallel

## Answer

Answer: (d) When a transversal cuts two lines such that pairs of interior angles on the same side of the transversal are complementary, then the lines have to be parallel

Question 31.

In the following figure, two straight lines AB and CD are intersecting each other at the point 0 and the angles thus formed at 0 are marked, then the value of ∠x – ∠y is

(a) 56°

(b) 118°

(c) 62°

(d) 180°

## Answer

Answer: (a) 56°

Hint:

∠x – ∠y = (180° – 62°) – 62° = 118° – 62° = 56°.

Question 32.

In the following figure, tell which pair of angles are not corresponding angles?

(a) ∠1, ∠5

(b) ∠2, ∠6

(c) ∠3, ∠7

(d) ∠3, ∠5

## Answer

Answer: (d) ∠3, ∠5

Hint:

∠3, ∠5 are alternate interior angles.

Question 33.

See the figure of Q. 32 above. Which pair of angles are alternate interior angles?

(a) ∠1, ∠5

(b) ∠2, ∠6

(c) ∠3, ∠7

(d) ∠3, ∠5

## Answer

Answer: (d) ∠3, ∠5

Hint:

Definition of alternate interior angles.

Question 34.

In the following figure, a transversal cuts two parallel lines l and m at points G and H respectively and the angles thus formed are marked. If ∠1 is an acute angle, then, which of the following statements is false?

(а) ∠1 + ∠2 = 180°

(b) ∠2 + ∠5 = 180°

(c) ∠3 + ∠8 = 180°

(d) ∠2 + ∠6 = 180°.

## Answer

Answer: (d) ∠2 + ∠6 = 180°

Hint:

∠2 = ∠6, corresponding angles.

Question 35.

In the following figure, a transversal c intersects two parallel lines a and b at A and B respectively and the angles formed at A and B are marked. Tell which of the following pairs of angles need not be equal?

(a) ∠1, ∠2

(b) ∠1, ∠3

(c) ∠1, ∠5

(d) ∠2, ∠8

## Answer

Answer: (a) ∠1, ∠2

Hint:

∠1, ∠2 simply make a linear pair.

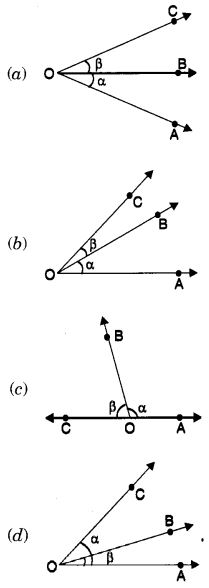

Question 36.

Which of the following pairs of angles are not adjacent angles?

## Answer

Answer: (d)

Question 37.

Find the measure of the angle which is double of its complementary angle?

(a) 60°

(b) 30°

(c) 45°

(d) 120°

## Answer

Answer: (a) 60°

Hint:

x° = 2(90° – x°) ⇒ x° = 60°.

Question 38.

Find the measure of the angle which is half of its supplementary angle?

(a) 60°

(b) 120°

(c) 90°

(d) 45°

## Answer

Answer: (a) 60°

Hint:

x° = \(\frac { 1 }{ 2 } \)(180° – x°) ⇒ x° = 60°.

Question 39.

In the following figure, if ∠1 + ∠3 = 120°, then ∠2 + ∠4 is equal to

(a) 60°

(b) 120°

(c) 240°

(d) 80°

## Answer

Answer: (c) 240°

Hint:

∠2 + ∠4 = 360°- (∠1 + ∠3) = 360°- 120° = 240°

Question 40.

In the following figure, if ∠1 + ∠2 = 100°, then the measure of ∠4 is equal to

(a) 50°

(b) 100°

(c) 80°

(d) 130°

## Answer

Answer: (d) 130°

Hint:

∠1 = ∠2; ∠1 + ∠2 = 100°

∴ ∠1 = 50°

∴ ∠4 = 180° – 50° = 130°.

Question 41.

In the following figure, ∠1 + ∠2 + ∠3 = 230°, then the measure of ∠4 is equal to

(a) 130°

(b) 80°

(c) 65°

(d) 90°

## Answer

Answer: (a) 130°

Hint:

∠ 4 = 360° – 230° = 130°.

Question 42.

In the following figure EF || GH. Then, the measure of ∠x is equal to

(a) 30°

(b) 45°

(c) 60°

(d) 40°

## Answer

Answer: (a) 30°

Hint:

(x + 30°) + 120° = 180° ⇒ x = 30°.

Question 43.

In the following figure, l || m. Find the measure of ∠ x.

(a) 60°

(b) 45°

(c) 30°

(d) none of these

## Answer

Answer: (a) 60°

Hint:

x + x + 60° = 180° ⇒ x = 60°.

Question 44.

In the following figure, AB || DG and BC || EF. Also, ∠ABC = 60°. Then, the measure of ∠DEF is

(a) 30°

(b) 60°

(c) 45°

(d) 120°

## Answer

Answer: (b) 60°

Hint:

∠DEF = ∠DGC = ∠ABC = 60°.

Question 45.

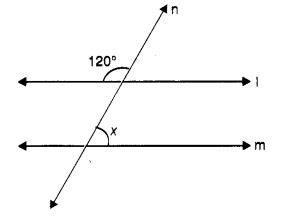

Find the value of x in the following figure, if l || m.

(a) 30°

(b) 45°

(c) 60°

(d) none of these

## Answer

Answer: (c) 60°

Hint:

x + 120° = 180° ⇒ x = 60°.

We hope the given NCERT MCQ Questions for Class 7 Maths Chapter 5 Lines and Angles with Answers Pdf free download will help you. If you have any queries regarding Lines and Angles CBSE Class 7 Maths MCQs Multiple Choice Questions with Answers, drop a comment below and we will get back to you soon.
