ML Aggarwal Class 7 Solutions Chapter 15 Visualising Solid Shapes Ex 15.2 for ICSE Understanding Mathematics acts as the best resource during your learning and helps you score well in your exams.

## ML Aggarwal Class 7 Solutions for ICSE Maths Chapter 15 Visualising Solid Shapes Ex 15.2

Question 1.

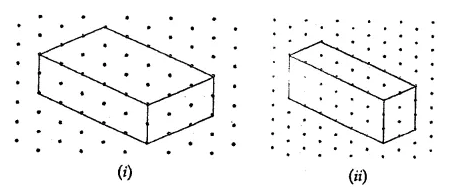

The dimensions of a cuboid are 5 cm, 3 cm, and 2 cm. Draw three different isometric sketches of this cuboid with height

(i) 2 cm

(ii) 3 cm

(iii) 5 cm

Solution:

Question 2.

Give (i) an oblique sketch (ii) an isometric sketch for each of the following:

(a) A cube is with an edge 4 cm long.

(b) A cuboid of length 6 cm, breadth 4 cm, and height 3 cm.

Solution:

Question 3.

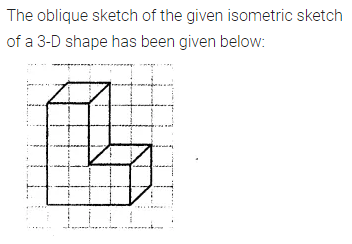

The adjoining figure shows an isometric sketch of a 3-D shape. Draw an oblique sketch that matches this sketch.

Solution:

Question 4.

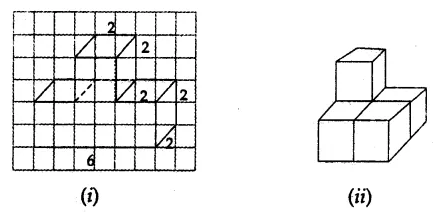

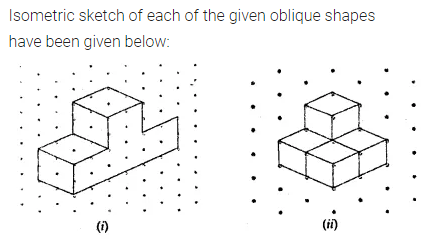

Draw an isometric sketch of each of the following oblique shapes:

Solution:
