ML Aggarwal Class 7 Solutions Chapter 13 Practical Geometry Check Your Progress for ICSE Understanding Mathematics acts as the best resource during your learning and helps you score well in your exams.
ML Aggarwal Class 7 Solutions for ICSE Maths Chapter 13 Practical Geometry Check Your Progress
Question 1.
State whether the following statements are true or false. Justify your answer.
(i) A triangle with lengths of sides 2.5 cm, 3 cm, and 6 cm can be constructed.
(ii) A triangle DEF with EF = 7.2 cm, m∠E = 110° and m∠F = 80° can be constructed.
(iii) If the measure of an acute angle and the length of the hypotenuse of a right-angled triangle are given, then the triangle can be constructed.
Solution:
Question 2.
Draw a line AB and take a point C outside it. Through C, draw a line parallel to AB by using the concept of equal corresponding angles.
Solution:
Question 3.
Draw a triangle PQR with PQ = 4 cm, QR = 3.5 cm and PR = 4 cm. What type of triangle is this?
Solution:
Question 4.

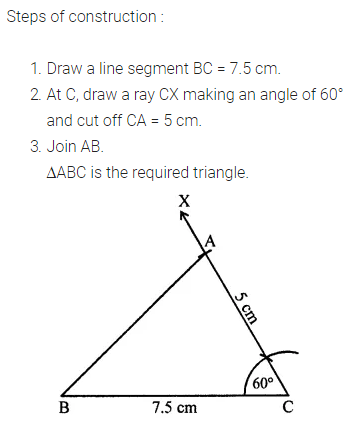

Construct a triangle ABC with BC = 7.5 cm, AC = 5 cm and m∠C = 60° by using ruler and compasses only.
Solution:
Question 5.

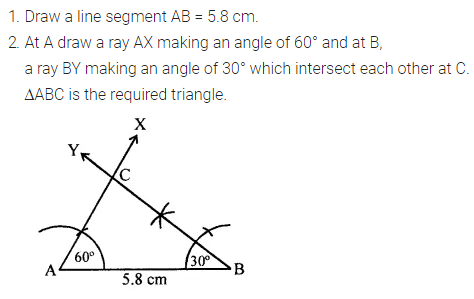

Construct a triangle ABC, given m∠A = 60°, m∠B = 30° and AB = 5.8 cm by using ruler and compasses only.
Solution:
Steps of Construction:
Question 6.

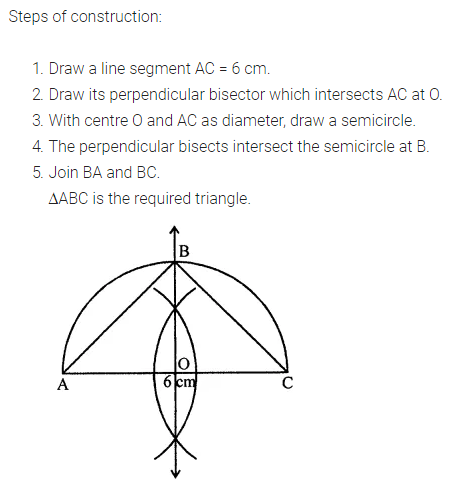

Construct an isosceles right angled triangle ABC, with m∠ABC = 90° and AC = 6 cm.
Solution:
