ML Aggarwal Class 6 Solutions Chapter 13 Practical Geometry Ex 13.2 for ICSE Understanding Mathematics acts as the best resource during your learning and helps you score well in your exams.

## ML Aggarwal Class 6 Solutions for ICSE Maths Chapter 13 Practical Geometry Ex 13.2

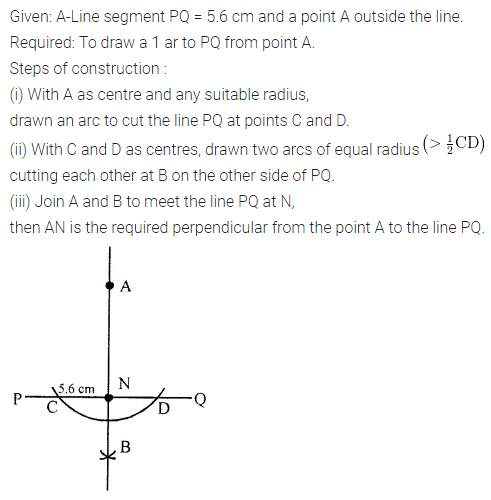

Question 1.

Draw a line segment \(\overline{\mathrm{PQ}}\) =5.6 cm. Draw a perpendicular to it from a point A outside \(\overline{\mathrm{PQ}}\) by using ruler and compass.

Solution:

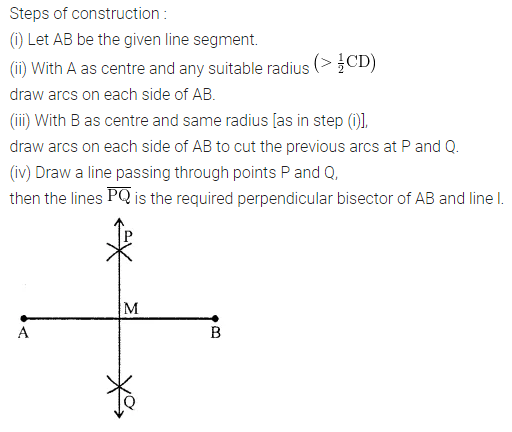

Question 2.

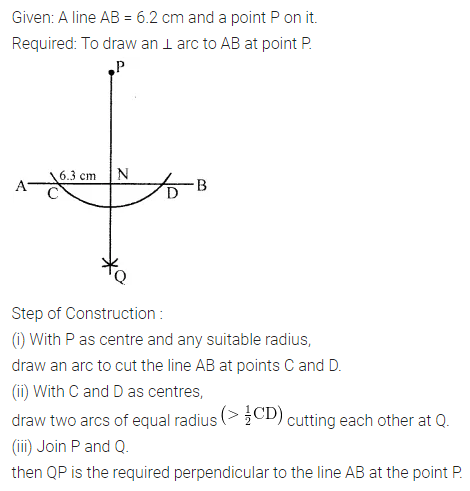

Draw a line segment \(\overline{\mathrm{AB}}\) = 6.2 cm. Draw a perpendicular to it at a point M on \(\overline{\mathrm{AB}}\) by using ruler and compass.

Solution:

Question 3.

Draw a line l and take a point P on it. Through P, draw a line segment \(\overline{\mathrm{PQ}}\) perpendicular to l. Now draw a perpendicular to \(\overline{\mathrm{PQ}}\) at Q (use ruler and compass).

Solution:

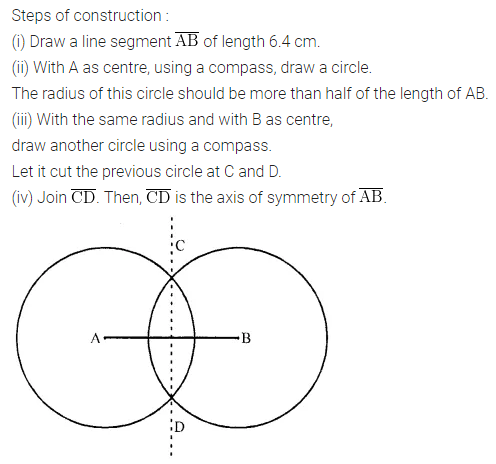

Question 4.

Draw a line segment \(\overline{\mathrm{AB}}\) of length 6.4 cm and construct its axis of symmetry (use ruler and compass).

Solution:

Question 5.

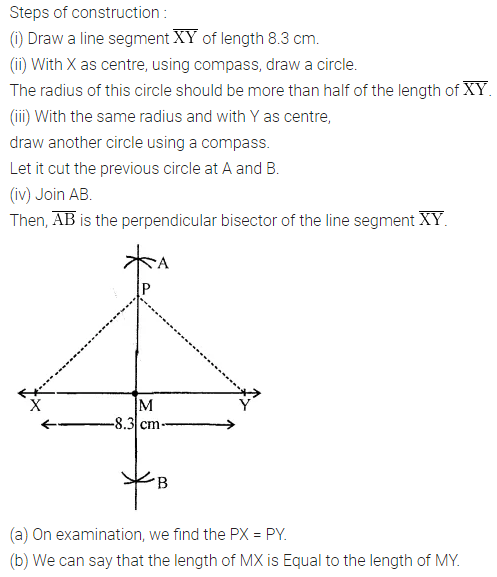

Draw the perpendicular bisector of \(\overline{\mathrm{XY}}\) whose length is 8.3 cm.

(i) Take any point P on the bisector drawn. Examine whether PX = PY.

(ii) If M is the mid-point of \(\overline{\mathrm{XY}}\), what can you say about the lengths MX and MY?

Solution:

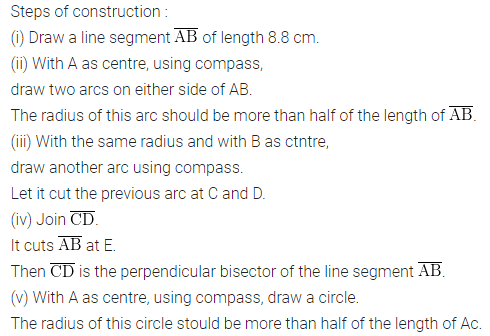

Question 6.

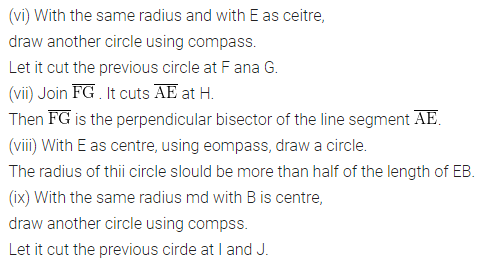

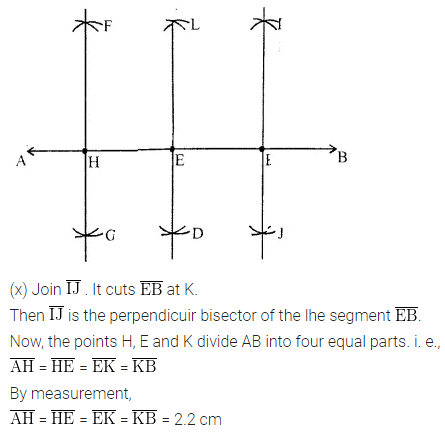

Draw a line segment of length 8.8 cm. Using ruler and compass, divide it into four equal parts. Verify by actual measurement.

Solution:

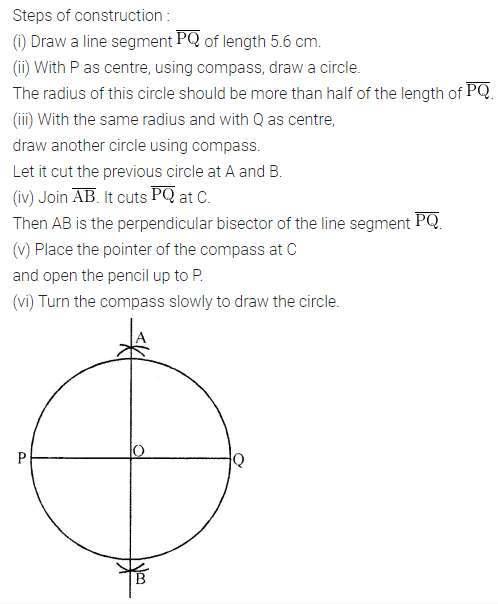

Question 7.

With \(\overline{\mathrm{PQ}}\) of length 5.6 cm as diameter, draw a circle.

Solution:

Question 8.

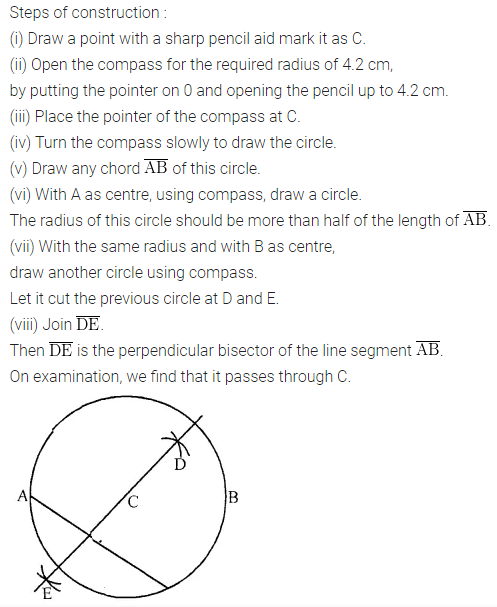

Draw a circle with centre C and radius 4.2 cm. Draw any chord AB. Construct the perpendicular bisector of AB and examine if it passes through C.

Solution:

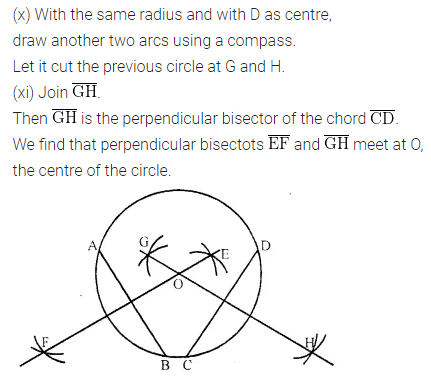

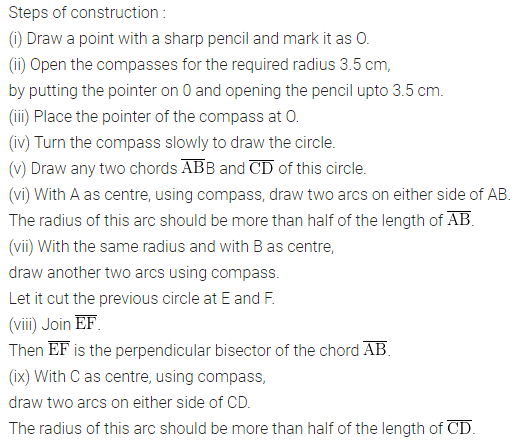

Question 9.

Draw a circle of radius 3.5 cm. Draw any two of its (non-parallel) chords. Construct the perpendicular bisectors of these chords. Where do they meet?

Solution:
