## RD Sharma Class 9 Solutions Chapter 11 Co-ordinate Geometry Ex 11.2

These Solutions are part of RD Sharma Class 9 Solutions. Here we have given RD Sharma Class 9 Solutions Chapter 11 Co-ordinate Geometry Ex 11.2

Other Exercises

- RD Sharma Class 9 Solutions Chapter 11 Co-ordinate Geometry Ex 11.1
- RD Sharma Class 9 Solutions Chapter 11 Co-ordinate Geometry Ex 11.2
- RD Sharma Class 9 Solutions Chapter 11 Co-ordinate Geometry VSAQS
- RD Sharma Class 9 Solutions Chapter 11 Co-ordinate Geometry MCQS

Question 1.

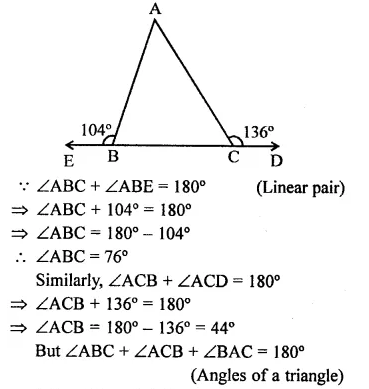

The exterior angles obtained on producing the base of a triangle both ways are 104° and 136°. Find all the angles of the triangle.

Solution:

In ∆ABC, base BC is produced both ways to D and E respectivley forming ∠ABE = 104° and ∠ACD = 136°

Question 2.

In the figure, the sides BC, CA and AB of a ∆ABC have been produced to D, E and F respectively. If ∠ACD = 105° and ∠EAF = 45°, find all the angles of the ∆ABC.

Solution:

In ∆ABC, sides BC, CA and BA are produced to D, E and F respectively.

∠ACD = 105° and ∠EAF = 45°

∠ACD + ∠ACB = 180° (Linear pair)

⇒ 105° + ∠ACB = 180°

⇒ ∠ACB = 180°- 105° = 75°

∠BAC = ∠EAF (Vertically opposite angles)

= 45°

But ∠BAC + ∠ABC + ∠ACB = 180°

⇒ 45° + ∠ABC + 75° = 180°

⇒ 120° +∠ABC = 180°

⇒ ∠ABC = 180°- 120°

∴ ∠ABC = 60°

Hence ∠ABC = 60°, ∠BCA = 75°

and ∠BAC = 45°

Question 3.

Compute the value of x in each of the following figures:

Solution:

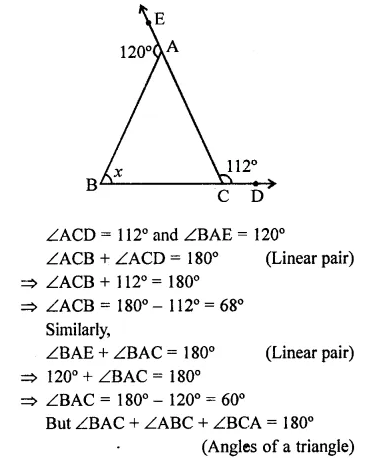

(i) In ∆ABC, sides BC and CA are produced to D and E respectively

(ii) In ∆ABC, side BC is produced to either side to D and E respectively

∠ABE = 120° and ∠ACD =110°

∵ ∠ABE + ∠ABC = 180° (Linear pair)

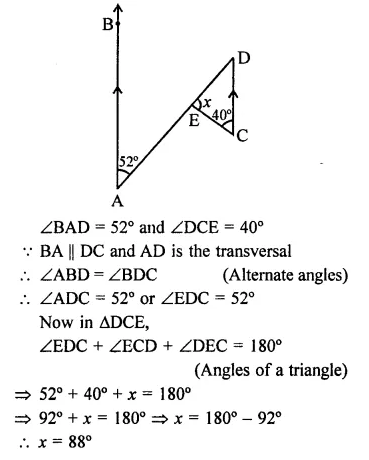

(iii) In the figure, BA || DC

Question 4.

In the figure, AC ⊥ CE and ∠A: ∠B : ∠C = 3:2:1, find the value of ∠ECD.

Solution:

In ∆ABC, ∠A : ∠B : ∠C = 3 : 2 : 1

BC is produced to D and CE ⊥ AC

∵ ∠A + ∠B + ∠C = 180° (Sum of angles of a triangles)

Let∠A = 3x, then ∠B = 2x and ∠C = x

∴ 3x + 2x + x = 180° ⇒ 6x = 180°

⇒ x = \(\frac { { 180 }^{ \circ } }{ 6 }\) = 30°

∴ ∠A = 3x = 3 x 30° = 90°

∠B = 2x = 2 x 30° = 60°

∠C = x = 30°

In ∆ABC,

Ext. ∠ACD = ∠A + ∠B

⇒ 90° + ∠ECD = 90° + 60° = 150°

∴ ∠ECD = 150°-90° = 60°

Question 5.

In the figure, AB || DE, find ∠ACD.

Solution:

In the figure, AB || DE

AE and BD intersect each other at C ∠BAC = 30° and ∠CDE = 40°

∵ AB || DE

∴ ∠ABC = ∠CDE (Alternate angles)

⇒ ∠ABC = 40°

In ∆ABC, BC is produced

Ext. ∠ACD = Int. ∠A + ∠B

= 30° + 40° = 70°

Question 6.

Which of the following statements are true (T) and which are false (F):

(i) Sum of the three angles of a triangle is 180°.

(ii) A triangle can have two right angles.

(iii) All the angles of a triangle can be less than 60°.

(iv) All the angles of a triangle can be greater than 60°.

(v) All the angles of a triangle can be equal to 60°.

(vi) A triangle can have two obtuse angles.

(vii) A triangle can have at most one obtuse angles.

(viii) If one angle of a triangle is obtuse, then it cannot be a right angled triangle.

(ix) An exterior angle of a triangle is less than either of its interior opposite angles.

(x) An exterior angle of a triangle is equal to the sum of the two interior opposite angles.

(xi) An exterior angle of a triangle is greater than the opposite interior angles.

Solution:

(i) True.

(ii) False. A right triangle has only one right angle.

(iii) False. In this, the sum of three angles will be less than 180° which is not true.

(iv) False. In this, the sum of three angles will be more than 180° which is not true.

(v) True. As sum of three angles will be 180° which is true.

(vi) False. A triangle has only one obtuse angle.

(vii) True.

(viii)True.

(ix) False. Exterior angle of a triangle is always greater than its each interior opposite angles.

(x) True.

(xi) True.

Question 7.

Fill in the blanks to make the following statements true:

(i) Sum of the angles of a triangle is ………

(ii) An exterior angle of a triangle is equal to the two …….. opposite angles.

(iii) An exterior angle of a triangle is always …….. than either of the interior opposite angles.

(iv) A triangle cannot have more than ………. right angles.

(v) A triangles cannot have more than ……… obtuse angles.

Solution:

(i) Sum of the angles of a triangle is 180°.

(ii) An exterior angle of a triangle is equal to the two interior opposite angles.

(iii) An exterior angle of a triangle is always greater than either of the interior opposite angles.

(iv) A triangle cannot have more than one right angles.

(v) A triangles cannot have more than one obtuse angles.

Question 8.

In a ∆ABC, the internal bisectors of ∠B and ∠C meet at P and the external bisectors of ∠B and ∠C meet at Q. Prove that ∠BPC + ∠BQC = 180°.

Solution:

Given : In ∆ABC, sides AB and AC are produced to D and E respectively. Bisectors of interior ∠B and ∠C meet at P and bisectors of exterior angles B and C meet at Q.

To prove : ∠BPC + ∠BQC = 180°

Proof : ∵ PB and PC are the internal bisectors of ∠B and ∠C

∠BPC = 90°+ \(\frac { 1 }{ 2 }\) ∠A …(i)

Similarly, QB and QC are the bisectors of exterior angles B and C

∴ ∠BQC = 90° + \(\frac { 1 }{ 2 }\) ∠A …(ii)

Adding (i) and (ii),

∠BPC + ∠BQC = 90° + \(\frac { 1 }{ 2 }\) ∠A + 90° – \(\frac { 1 }{ 2 }\) ∠A

= 90° + 90° = 180°

Hence ∠BPC + ∠BQC = 180°

Question 9.

In the figure, compute the value of x.

Solution:

In the figure,

∠ABC = 45°, ∠BAD = 35° and ∠BCD = 50° Join BD and produce it E

Question 10.

In the figure, AB divides ∠D AC in the ratio 1 : 3 and AB = DB. Determine the value of x.

Solution:

In the figure AB = DB

Question 11.

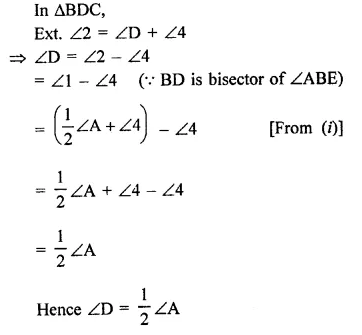

ABC is a triangle. The bisector of the exterior angle at B and the bisector of ∠C intersect each other at D. Prove that ∠D = \(\frac { 1 }{ 2 }\) ∠A.

Solution:

Given : In ∠ABC, CB is produced to E bisectors of ext. ∠ABE and into ∠ACB meet at D.

Question 12.

In the figure, AM ⊥ BC and AN is the bisector of ∠A. If ∠B = 65° and ∠C = 33°, find ∠MAN.

Solution:

Question 13.

In a AABC, AD bisects ∠A and ∠C > ∠B. Prove that ∠ADB > ∠ADC.

Solution:

Given : In ∆ABC,

∠C > ∠B and AD is the bisector of ∠A

To prove : ∠ADB > ∠ADC

Proof: In ∆ABC, AD is the bisector of ∠A

∴ ∠1 = ∠2

In ∆ADC,

Ext. ∠ADB = ∠l+ ∠C

⇒ ∠C = ∠ADB – ∠1 …(i)

Similarly, in ∆ABD,

Ext. ∠ADC = ∠2 + ∠B

⇒ ∠B = ∠ADC – ∠2 …(ii)

From (i) and (ii)

∵ ∠C > ∠B (Given)

∴ (∠ADB – ∠1) > (∠ADC – ∠2)

But ∠1 = ∠2

∴ ∠ADB > ∠ADC

Question 14.

In ∆ABC, BD ⊥ AC and CE ⊥ AB. If BD and CE intersect at O, prove that ∠BOC = 180°-∠A.

Solution:

Given : In ∆ABC, BD ⊥ AC and CE⊥ AB BD and CE intersect each other at O

To prove : ∠BOC = 180° – ∠A

Proof: In quadrilateral ADOE

∠A + ∠D + ∠DOE + ∠E = 360° (Sum of angles of quadrilateral)

⇒ ∠A + 90° + ∠DOE + 90° = 360°

∠A + ∠DOE = 360° – 90° – 90° = 180°

But ∠BOC = ∠DOE (Vertically opposite angles)

⇒ ∠A + ∠BOC = 180°

∴ ∠BOC = 180° – ∠A

Question 15.

In the figure, AE bisects ∠CAD and ∠B = ∠C. Prove that AE || BC.

Solution:

Given : In AABC, BA is produced and AE is the bisector of ∠CAD

∠B = ∠C

To prove : AE || BC

Proof: In ∆ABC, BA is produced

∴ Ext. ∠CAD = ∠B + ∠C

⇒ 2∠EAC = ∠C + ∠C (∵ AE is the bisector of ∠CAE) (∵ ∠B = ∠C)

⇒ 2∠EAC = 2∠C

⇒ ∠EAC = ∠C

But there are alternate angles

∴ AE || BC

Hope given RD Sharma Class 9 Solutions Chapter 11 Co-ordinate Geometry Ex 11.2 are helpful to complete your math homework.

If you have any doubts, please comment below. Learn Insta try to provide online math tutoring for you.
