## CBSE Class 10 Maths Chapter 11 Notes Constructions

### Constructions Class 10 Notes Understanding the Lesson

Division of a line segment internally in the given ratio.

Let AB be a line segment of certain length. We need a point P on AB dividing it internally in the ratio m : n

Steps of Construction: Let m = 4, n = 3.

- Draw a line segment AB of given length.
- Make an acute ∠BAX with AB
- Use a compass of any radius and mark 7(i.e. m + n) points A
_{1}, A_{2},…… , A_{7}

such that AA_{1}= A_{1}A_{2}= A_{2}A_{3}=………………= A_{6}A_{7 } - Join BA
_{7} - Through the point A
_{4}[m = 4], draw a line parallel to BA_{7}by making an angle equal to AA_{7}B at A_{4}intersecting AB at P. Then AP : PB = 4 : 3.

Construction of a Triangle similar to a given Triangle as per given scale factor.

1. Scale Factor \(\frac{m}{n}\)(where m < n)

Steps of construction: Let \(\frac{m}{n}=\frac{3}{4}\)

- Construct a triangle ABC by using given data.
- Make an acute angle ∠BAX below the base AB.
- Along AX, mark 4 points [the greater of 3 and 4 in \(\frac{3}{4}\)] as A
_{1}, A_{2},A_{3}, A_{4}such that

AA_{1}= A_{1}A_{2}= A_{2}A_{3}= A_{3}A_{4}. - Join A
_{4 }B

- From A
_{3}, draw A_{g}B’ || A_{4}B, meeting AB at B’.

From B’, draw B’C’ || BC, meeting AC at C’.

Thus, ΔAB’C’ is the required triangle each of whose sides is \(\frac{3}{4} \)of the corresponding side of ΔABC.

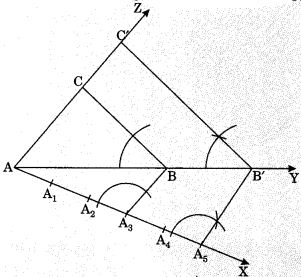

2. Scale Factor \(\frac{m}{n} \) (where m > n)

Steps of construction:

Let \(\frac{m}{n}=\frac{5}{3}\)

- Construct ΔABC using given data.
- Make an acute angle ∠BAX below the base AB. Extend AB to AY and AC to AZ.

- Along AX, mark 5 points [the greater of 5 and 3 in \(\frac{5}{3} \)

such that AA_{1}= A_{1}A_{2 }=………. = A_{4}A_{5}. - Join A
_{3}B. - From A
_{g}, draw A_{5}B’ || A_{3}B, meeting AY produced at B’. - From B’, draw B’C’ || BC, meeting AZ produced at C’.

Thus, ΔAB’C’ is the required triangle, each of whose sides is \(\frac{5}{3}\) of the corresponding side of ΔABC.

Construction of the pair of tangents from an external point to a circle.

Let O is the centre of the circle and a point A is external point to a circle.

Steps of construction

- Join AO and bisect it. Let M be the mid-point of AO.
- Taking M as centre and MO as radius, draw a circle.

Let it intersects the given circle at the points B and C. - Join AB and AC.

Thus, AB and AC are the required tangents.
